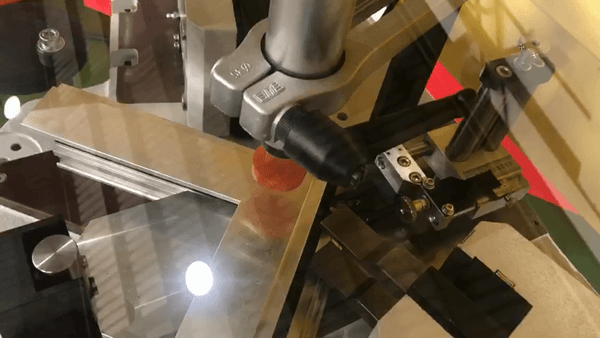

L-110 Aluminium windows Crimping machine
Description:
Robust and resistant machine made with solid steel.
The assembling heads are controlled by a single mechanical
system that ensures a stable and simultaneous movement.
The counter support is pneumatically operated to ensure the
maximum pressure during the assembling.
The heads can be adjusted longitudinally.
Caracteristics:
-
Max. crimping force 3500 Kgp
-
Operating stroke of knives 10,5 mm
-
Bracing clamp stroke 80 mm
-
Max. crimping height 100 mm
-
Operating stroke of knives from 30 to 60 mm
-
Control of bracing clamp in its work position Hydraulic
-
Nominal pressure 10 bar
-
Triangular end of bracing clamp 30 mm
-
Support profiles right and left 1 pair
PACKAGING AND DIMENSIONS:
-
1200 x 850 x 770 (265 Kg)
-
